This is part one of the lakehouse ETL with dbt and Trino series. Start at the introduction if you haven’t already.

Trino introduction

Trino is a distributed SQL query engine designed to query large datasets distributed over one or more heterogeneous data sources.

Since Trino is being called a database by many members of the community, it makes sense to begin with a definition of what Trino is not.

Do not mistake the fact that Trino understands SQL with it providing the features of a standard database. Trino is not a general-purpose relational database. It is not a replacement for databases like MySQL, PostgreSQL or Oracle.

Trino is a tool designed to efficiently query vast amounts of data using distributed queries, and was designed to handle data warehousing, analytics, data analysis, and aggregating large amounts of data and producing reports. These workloads are often classified as Online Analytical Processing (OLAP).

Trino ETL/ELT capabilities

With fault-tolerant execution, Trino is now ready to handle production, business critical data pipelines, data transformation, and write operations using the unique feature of query federation.

In version 393, Trino added support for the MERGE statement, which can be used to effectively load data into target tables.
dbt-trino supports incremental models and snapshot features based on the MERGE statement. Note that MERGE is currently supported by a limited number of Trino connectors, such as Hive, Iceberg, Delta Lake and others.

Starburst products

Starburst Galaxy and Starburst Enterprise fully support dbt-trino. To learn more about these products, check out the official Starburst documentation.

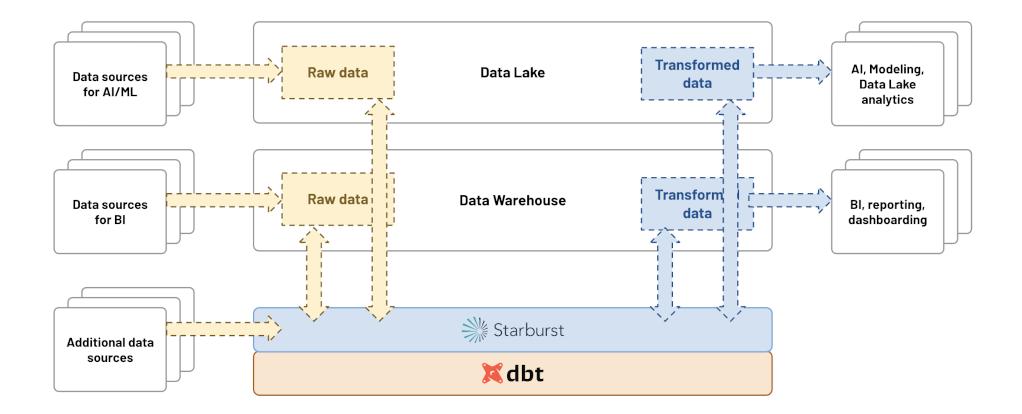

How dbt works with Starburst

Initialization

This page presumes you have Docker installed and running, and that you have some familiarity with Docker commands. For Mac and Windows evaluations, make sure you have Docker Desktop installed and running.

You will go through all the steps of running Trino on your own computer and set up a set of docker containers using docker compose and the following:

  • The Trino server.
  • The webshop database on PostgreSQL.
  • The clickstream data on MongoDB.
  • The lakehouse powered by Iceberg table format.

Configuring Trino

Running Trino is fairly easy. Without docker compose you could simply run the following command and have a Trino instance running locally:

docker run -d -p 8080:8080  --name trino --rm trinodb/trino:latest

However, you are going to add all the data sources and our data lake later on. So, you need something that can run more than one container, that’s where Docker Compose comes in.

Compose is a tool for defining and running multi-container Docker applications. With Compose, you use a YAML file to configure your application’s services. Then, with a single command, you create and start all the services from your configuration.

Create this docker-compose.yml file, add the Trino container, and create a network so all our containers can talk to each other:

version: "3.9"

services:
  trino:
    hostname: trino
    image: 'trinodb/trino:latest'
    ports:
      - '8080:8080'

networks:
  trino-network:
    driver: bridge

To run your docker setup, run docker compose up.

Once you see io.trino.server.Server ======== SERVER STARTED ========, your server has successfully started up, and you are ready to query. You can use the Trino CLI to run some queries:

-- check version of Trino
SELECT version();
--

Adding PostgreSQL webshop database

Adding the PostgreSQL database requires additional configuration. Trino needs to know how to connect to your database.

First, create a trino/catalog folder in your project, and add the Trino configuration there. This folder is mounted onto /etc/trino/catalog in the Trino container.

Specify :ro for read-only, as it shouldn’t be possible to change these configurations once the container is started:

...
services:
  trino:
    hostname: trino
    image: 'trinodb/trino:latest'
    ports:
      - '8080:8080'
    volumes:
      - ./trino/catalog:/etc/trino/catalog:ro
...

Now, add the catalog configuration to connect to the PostgreSQL database. Create a webshop.properties file in the trino/catalog folder:

connector.name=postgresql
connection-url=jdbc:postgresql://jaffle_webshop:5432/postgres
connection-user=postgres
connection-password=postgres

You now need to add the actual Postgres database:

...
  jaffle_webshop:
    image: postgres:11
    container_name: jaffle_webshop
    volumes:
      - ./jaffle_webshop/init-customers.sql:/docker-entrypoint-initdb.d/init-customers.sql
      - ./jaffle_webshop/raw_customers.csv:/home/dump/raw_customers.csv
      - ./jaffle_webshop/init-payments.sql:/docker-entrypoint-initdb.d/init-payments.sql
      - ./jaffle_webshop/raw_payments.csv:/home/dump/raw_payments.csv
      - ./jaffle_webshop/init-orders.sql:/docker-entrypoint-initdb.d/init-orders.sql
      - ./jaffle_webshop/raw_orders.csv:/home/dump/raw_orders.csv
      - ./jaffle_webshop/init-sessions.sql:/docker-entrypoint-initdb.d/init-sessions.sql
      - ./jaffle_webshop/raw_sessions.csv:/home/dump/raw_sessions.csv
    environment:
      - POSTGRES_DB=postgres
      - POSTGRES_USER=postgres
      - POSTGRES_PASSWORD=postgres
    ports:
      - "15432:5432"
...

Adding the click-stream database (Mongodb)

MongoDB is a NoSQL document database where clickstream data from websites is loaded.

Create a website.properties file in the trino/catalog folder:

connector.name=mongodb
mongodb.connection-url=mongodb://mongodb:27017/

Adding the lakehouse powered by Iceberg and MinIO

The final step in setting up Trino with all underlying components and databases is to create and configure MinIO, which is an S3-compatible object storage.

Create a datalake.properties file in the trino/catalog folder:

connector.name=iceberg
hive.metastore.uri=thrift://hive-metastore:9083
hive.s3.endpoint=http://minio:9000
hive.s3.path-style-access=true
hive.s3.aws-access-key=minio
hive.s3.aws-secret-key=minio123
hive.metastore-cache-ttl=0s
hive.metastore-refresh-interval=5s
hive.metastore-timeout=10s

The Iceberg connector also requires a Hive metastore service (HMS), which is the hive-metastore container and the required database configured with the following docker-compose code snippet:

# HMS backend database
  metastore_db:
    image: postgres:11
    hostname: metastore_db
    container_name: metastore_db
    environment:
      POSTGRES_USER: hive
      POSTGRES_PASSWORD: hive
      POSTGRES_DB: metastore

  # Hive metastore service (HMS)
  hive-metastore:
    container_name: hive-metastore
    hostname: hive-metastore
    image: 'starburstdata/hive:3.1.2-e.15'
    ports:
      - '9083:9083' # Metastore Thrift
    environment:
      HIVE_METASTORE_DRIVER: org.postgresql.Driver
      HIVE_METASTORE_JDBC_URL: jdbc:postgresql://metastore_db:5432/metastore
      HIVE_METASTORE_USER: hive
      HIVE_METASTORE_PASSWORD: hive
      HIVE_METASTORE_WAREHOUSE_DIR: s3://datalake/
      S3_ENDPOINT: http://minio:9000
      S3_ACCESS_KEY: minio
      S3_SECRET_KEY: minio123
      S3_PATH_STYLE_ACCESS: "true"
      REGION: ""
      GOOGLE_CLOUD_KEY_FILE_PATH: ""
      AZURE_ADL_CLIENT_ID: ""
      AZURE_ADL_CREDENTIAL: ""
      AZURE_ADL_REFRESH_URL: ""
      AZURE_ABFS_STORAGE_ACCOUNT: ""
      AZURE_ABFS_ACCESS_KEY: ""
      AZURE_WASB_STORAGE_ACCOUNT: ""
      AZURE_ABFS_OAUTH: ""
      AZURE_ABFS_OAUTH_TOKEN_PROVIDER: ""
      AZURE_ABFS_OAUTH_CLIENT_ID: ""
      AZURE_ABFS_OAUTH_SECRET: ""
      AZURE_ABFS_OAUTH_ENDPOINT: ""
      AZURE_WASB_ACCESS_KEY: ""
    depends_on:
      - metastore_db

  # MinIO object storage
  minio:
    hostname: minio
    image: 'minio/minio:RELEASE.2022-05-26T05-48-41Z'
    container_name: minio
    ports:
      - '9000:9000'
      - '9001:9001'
    environment:
      MINIO_ACCESS_KEY: minio
      MINIO_SECRET_KEY: minio123
    command: server /data --console-address ":9001"

  # This job creates the "datalake" bucket on Minio
  mc-job:
    image: 'minio/mc:RELEASE.2022-05-09T04-08-26Z'
    container_name: mc-job
    entrypoint: |
      /bin/bash -c "
      sleep 5;
      /usr/bin/mc config --quiet host add myminio http://minio:9000 minio minio123;
      /usr/bin/mc mb --quiet myminio/datalake
      "
    depends_on:
      - minio

Run docker compose up -d to spin up all containers from the docker compose manifest. Now, all your infrastructure is up and running, and you are ready to create your first models using dbt and Trino!
