This is part two of the lakehouse ETL with dbt and Trino series. Start at the introduction if you haven’t already.

Now that you have set up all the required infrastructure, go through all the steps needed to install dbt and start building data pipelines.

Intro to dbt-trino

The dbt-trino adapter uses Trino as an underlying query engine to perform query federation across disperse data sources. Trino connects to multiple and diverse data sources (available connectors) via one dbt connection, and processes SQL queries. Transformations defined in dbt are passed to Trino, which handles these SQL transformation queries, and translates them to read data, create tables or views, and manipulate data in the connected data sources.

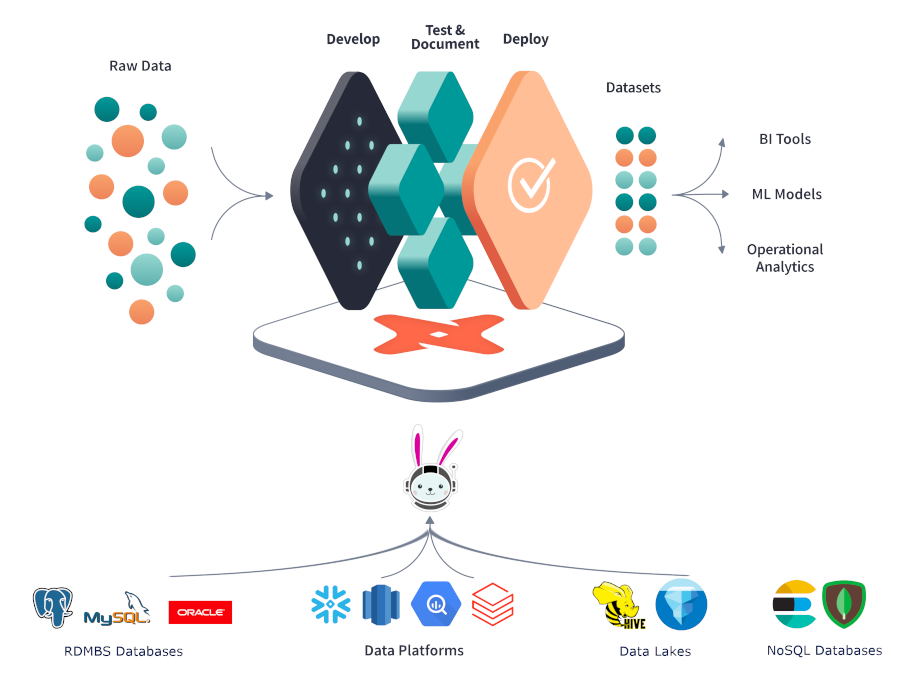

How dbt works with Starburst

Installing dbt and bootstrapping your project

dbt can be installed through executing pip install dbt-trino. You need to have Python 3.7+ installed.

After installing, you can run dbt --version to verify the dbt installation. It should result in something like the following:

Core:
  - installed: 1.3.0
  - latest:    1.3.0 - Up to date!

Plugins:
  - trino: 1.3.1 - Up to date!

Now, bootstrap the dbt project by executing dbt init. If you’ve just cloned or downloaded an existing dbt project, like in the case of a blog, dbt init can still help you set up your connection profile so that you can start working quickly. It prompts you for connection information, and to add a profile (using the profile name from the project) to your local profiles.yml, or create the file if it doesn’t already exist. More about configuring profiles is available from the official dbt documentation.

Take, for example, the following configuration where you persist your flows into the datalake catalog (or database) and analytics schema on the Trino server running on port 8080 using the user admin. Note that in this development setup you are not using any authentication mechanism, so method is set to none. With the threads configuration, you define how many simultaneous queries to run, in other words, how fast you want your project to refresh.

my_dbt_trino_project:
  target: dev
  outputs:
    dev:
      type: trino
      method: none
      user: admin
      database: datalake
      host: localhost
      port: 8080
      schema: analytics
      threads: 1

All profiles.yml configuration options specific to dbt-trino can be found on the dbt-trino GitHub repository.

Your first model

The core construct of dbt is a model. A model is a SQL file within your project in the models folder that contains a SELECT query. The results of this select query materializes in your database as a VIEW or TABLE.

For example, you can select all customers from your webshop database by creating a src_customers.sql file in your models.

SELECT * FROM webshop.public.customers

Now, when executing dbt run, dbt persists a table onto the datalake.analytics schema called src_customers. Running dbt run again replaces the existing view with a potential new definition if you change the query.

Run this query in your favorite database client to validate the results of your model.

SELECT * FROM datalake.analytics.src_customers;

Adding your data sources

As you can see above, you are sourcing directly from the operational PostgreSQL database. However, directly referencing to a database table in your models is a bad practice. To fix that, you need to define a dbt source. Sources define all external objects your project needs to get things done.

Add a new sources.yml file in your models folder with the following content:

version: 2

sources:
  - name: webshop
    database: webshop
    schema: public
    tables:
      - name: customers

In the src_customers.sql, you can now refer to this source instead of the hard-coded location created earlier. That saves us from having to change all these locations everywhere when they change or you want to fetch them from a test database instead of the production database. Adding the prefix src helps to quickly identify which models are built straight from sources.

SELECT * FROM {{ source('webshop', 'customers') }}

Note the double curly braces {{ … }}, which indicate that the code fragment in between is evaluated by dbt before sending the query to your Trino instance. The source macro, or function, takes the database and schema from the first argument called source_name, and the name of the object from the second argument called table_name. The end result, which is the compiled query, is the same as the query above without the source macro.

Adding EL to the T of dbt

Traditionally, dbt is used for database transformations only, hence the name data transformation tool. It leaves the extract and load to other tools, for example Airbyte or Fivetran. Now, with the data federation capabilities of Trino, EL (extract and load) is added to the T (Transform) capabilities of dbt. Any data can be added as if it was located within the same database, as long as there is a Trino connector for it. Think about having any relational or NoSQL databases, message queues, or API’s immediately available without having to perform an expensive and complicated extract and load process.

You have already loaded a table directly from our PostgreSQL database into the datalake without any additional tools required. Now, add another source–the clickstream data. For example, what if you want to know how many times a customer has visited our website before making a buy decision. Our clickstream data is readily available under the website catalog.

First, you add a new source website to the sources.yml file:

version: 2

sources:
  - name: webshop
    ...
  - name: website
    database: website
    schema: clickstream
    tables:
      - name: clicks

Create a model file src_clicks.sql under the models folder:

with source as (

    SELECT * FROM {{ source('website', 'clicks') }}

),

renamed as (

    SELECT

        visitorid,
        useragent,
        language,
        event,
        cast(from_iso8601_timestamp(eventtime) AS timestamp(6) with time zone) AS eventtime,
        page,
        referrer

    FROM source

)

SELECT * FROM renamed

Execute dbt run again to materialize a newly created view.

dbt implicitly builds your DAG

A crucial concept in data pipelines is a DAG (Direct Acrylic Graph). A DAG defines all the steps the data pipeline has to perform from source to target. Each step of a DAG performs its job when all its parents have finished and triggers the start of its direct children (the dependents).

Most tools, like Apache Airflow, take a very explicit approach on constructing DAGs. dbt, however, constructs the DAG implicitly.

Every step of the DAG is a simple SQL file (called a model in dbt). You can refer to other models using the ref macro, for example {{ ref(‘src_customers’)}}.

Let’s say, for example, you want to know how many times each customer visits the website before making a buying decision. For that, you need to join your webshop data with the clickstream data.

However, clickstream data tends to be big and not so easy to analyze. For example, the user might have researched products before actually registering or logging into the webshop. To solve this, you want to introduce the concept of sessionization, and try to associate these sessions with an actual user. Each visitor of the website gets a unique identifier that is stored in a long-lasting cookie. You also have a sessions table in the webshop where you can link this unique identifier to an actual user in your webshop. With this data, you can also identify the clicks performed prior to logging into the webshop. Below, you can see the lineage DAG of models generated by dbt.

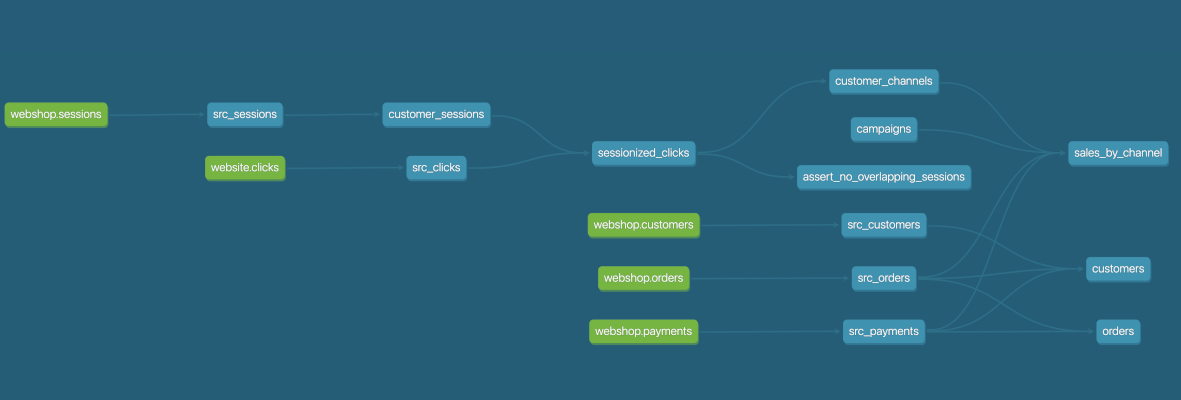

lineage image

First you need to add the sessions table to our sources:

version: 2

sources:
  - name: webshop
    database: webshop
    schema: public
    tables:
      - name: customers
      - name: sessions

Again, you add a simple model called src_sessions.sql that is just performing a select on our source:

with source as (

    SELECT * FROM {{ source('webshop', 'sessions') }}

),

renamed as (

    SELECT
        cookie_id,
        cast(from_unixtime(started_ts/1000) AS timestamp(6)) AS session_started,
        customer_id

    FROM source

)

SELECT * FROM renamed

Now, build this by creating a new model sessionized_clicks.sql. First identify some rules about our sessionization:

  • A session is a sequence of clicks, in which no two consecutive clicks are more than one hour apart.
  • Once a user logs in, you associate also past sessions with the user.

Trino supports numerous SQL functions and advanced operators that can be used in dbt models.

The query used in the following model uses some of Trino’s more sophisticated features. Although complicated, they are necessary and useful in the hands of a data engineer. One such feature, used to implement sessions, is
WINDOW operations. The WINDOW clause allows you to look from the current record to the group of records it belongs to. Some of the use cases are to detect the first or last record, or the maximum or minimum (any aggregation) within that group. It is different from a GROUP BY in the sense that it doesn’t group or reduce the number of records.

The model is also making use of macro (more on that in a section below) called star. It generates a comma-separated list of all fields that exist in the from relation, excluding any fields listed in the except argument. The construction is identical to SELECT * FROM {{ref(‘my_model’)}}, replacing star (*) with the star macro:

WITH sessions AS (

    SELECT

        date_diff('hour', lag(c.eventtime) OVER w, c.eventtime) > 1 AS new_session,
        {{ dbt_utils.star(ref("src_clicks"), "c") }},
        {{ dbt_utils.star(ref("customer_sessions"), "s", ["session_started", "session_ended"]) }},
        first_value(c.referrer) ignore nulls OVER (PARTITION BY s.customer_id ORDER BY c.eventtime ASC ROWS BETWEEN UNBOUNDED PRECEDING AND CURRENT ROW) AS channel,
        row_number() OVER w AS clickid,
        min(eventtime) OVER w AS session_started,
        max(eventtime) OVER w AS session_ended

    FROM {{ ref("src_clicks") }} c
    JOIN {{ ref("customer_sessions") }} s ON c.visitorid = s.cookie_id AND c.eventtime BETWEEN s.session_started AND s.session_ended
    WINDOW w AS (
        PARTITION BY c.visitorid ORDER BY c.eventtime
    )

),

sequenced_sessions AS (

    SELECT
        {{ dbt_utils.star(ref("src_clicks")) }},
        sum(if(new_session, 1, 0)) OVER w AS session_sequence,
        clickid,
        customer_id,
        session_started,
        session_ended,
        channel
    FROM sessions
    WINDOW w AS (
        PARTITION BY visitorid ORDER BY eventtime
    )
)

SELECT
    visitorid || '_' || cast(session_sequence as varchar) || '_' || cast(clickid as varchar) AS clickid,
    visitorid || '_' || cast(session_sequence as varchar) AS sessionid,
    customer_id,
    session_started,
    session_ended,
    channel,
    {{ dbt_utils.star(ref("src_clicks")) }}
FROM sequenced_sessions

Materializations (view, table, ephemeral)

To manage the performance of your data pipeline, you should wisely choose which models should be materialized as a view, which ones as a table, or just reused within an existing SQL statement.

As a general guideline, it is wise to make tables of all the data exposed to actual users, for example dashboards.

Here the sessionization is using a window and adding a session_id to each click. You don’t want this expensive operation to be performed every time you use the sessionized_clicks object. So it should be persisted as a table instead of a view.

Just adapt the sessionized_clicks.sql model and add a config on top:

{{ config(materialized='table') }}

Now, when you execute dbt run, dbt persists this model as a table by wrapping your query within a CREATE TABLE sessionized_clicks AS ... statement.

ephemeral models are not directly built into the database. Instead, dbt interpolates the code from this model into dependent models as a common table expression.

Is our sessionization logic correct

dbt makes it super easy to add data tests. Let’s say you want to test if your logic is correct. There are some generic tests like unique and not_null defined in schema.yml. Tests check if values in a given column are unique or not null.

The typical errors made when working on the sessionization logic are you messed something up and your sessions overlap. This should never be the case.

Add a dbt test to validate this. After modifying your model, you can easily run the test to see if your logic is correct.

Create assert_no_overlapping_sessions.sql in the tests folder.

SELECT
    sc1.session_started,
    sc1.session_ended,
    sc1.session_ended,
    sc2.session_started,
    sc1.visitorid,
    sc2.visitorid
FROM {{ ref('sessionized_clicks') }} sc1
JOIN {{ ref('sessionized_clicks') }} sc2
ON sc1.session_started > sc2.session_ended
AND sc1.session_ended < sc2.session_started
AND sc1.visitorid = sc2.visitorid

Now, you can run dbt test --select sessionized_clicks to test and validate the model.

Using dbt macros

dbt comes with powerful feature called macros. The well-maintained package dbt-utils contains macros that can be (re)used across dbt projects.

Starburst maintains dbt-trino-utils. This dbt package contains macros that:

  • Can be (re)used across dbt projects running on Trino or Starburst databases.
  • Define implementations of dispatched macros from other packages that can be used on Trino or Starburst databases.

To use dbt_utils or trino_utils, define both packages in the packages.yml file:

packages:
  - package: dbt-labs/dbt_utils
    version: {SEE DBT HUB FOR NEWEST VERSION}
  - package: starburstdata/trino_utils
    version: {SEE DBT HUB FOR NEWEST VERSION}

Next, tell the supported package to also look for the trino_utils macros by adding the relevant dispatches to your dbt_project.yml:

dispatch:
  - macro_namespace: dbt_utils
    search_order: ['trino_utils', 'dbt_utils']

Once packages are defined, run dbt deps which pulls the packages defined in packages.yml

A sample use case might be dropping and cleaning databases from objects which are no longer used. To do so simply run:

dbt run-operation trino__drop_old_relations

To preview the cleaning results, add --args "{dry_run: true}" at the end of the command above.

Adding static data with seeds

dbt also allows you to insert the content of CSV files (named seeds in dbt) directly into a table using the dbt seed command. This is particularly useful if you need to keep a list of mappings or values with your project.

For example, you have a list comprised of campaigns, countries, and age groups. Columns campaign_id identifies campaign, country where the campaign was run, and the age_group a target group for the campaign.

You can simply create a csv campaigns.csv and put it into the seeds folder.

campaign_id,country,age_group
1,US,"18-24"
2,Europe,"18-24"
3,US,"25-40"
4,Europe,"25-40"
5,US,"41-60"

After performing the dbt seed command you can reference the seed in our models using the familiar syntax:{{ ref(“campaigns”) }}.

Now, it’s time to make it even faster with incremental refreshing.
